Product details of the preform mould manufacturers
Product Specification
Shaping Mode: Plastic Injection Mould
Type:: Normal Preform Mold
Cavity:: 32
Product Material: Steel, Steel
Application:: Injection and produce PET preforms
Product Information
KAIXIN preform mould manufacturers is manufactured under a complete and scientific quality management system. With the extraordinary quality, it can attract the attention of most customers. This product has the advantage of cost-effectiveness and has become a trend in this field.
Mould Cavities | 8 / 16 / 24 / 32 / 48 / 64 / 72 / 96 Cavitieis |
Mould Brand | ALPS |
Neck Finish | PCO Neck finish |
Preform Weight | Supplied By Customer |
Insert Materials | ASSAB FS136/Purpose made 632 |
Mould Plate | 4Cr13/ P20 (Preharden) |
Hot Plate | H13 (Preharden) |
Heating Coil | Rotfil from Italy / Hotset form Germany |
Copper nozzle | Beryllium bronze From Italy |
Insulator | Froom USA DU PONT |
Suitable | Injection Molding Machine |
OEM / ODM | Acceptable |
Application | Innjection moulding machine |
Mold life | 2 million times |
Part surface | Polished/Smooth/Textured/Ground |
Product drawings | customized |
Certification | ISO9001:2015 |

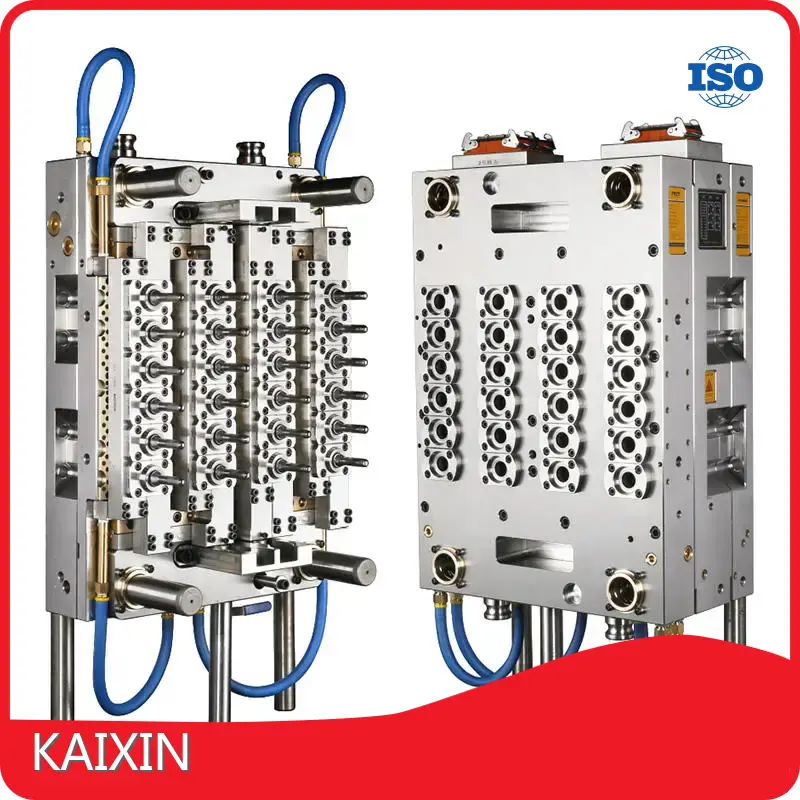

32 Cavity PET Plastic Preform Moulds Mold Plastic Maker In Mold
1. PET or PP preform mould
2. Factory price, fast delivery
3. Normal type, self lock system and pin valve preform mould
4. Whole life after-sale service
Leijin preform mould is widely used to produce PET and PP preforms with different neck diameter, screw and grams. Good-quality
preform mould produces good preforms and reduces the waste during bottle blowing.
There are 10 more engineers with 20 years mould experience working in Leijin company, to manufacture good quality preform mould
and other injection mould for clients all over the world.
10 sets of processing equipment work hardly, like CNC machine, boring machine, linear cutting machine etc, which reduce the mould
production time and warranty the mould quality..
Specification
Eceng Custom Cheap mould toy plastic Gift Pack bottle injection preform mold for saleinstructions 1: The number of preform cavity from 1 to 96.
2: The bottle preform is designed by computer simulation tensile test to improve the finished product rate of the
blown bottle.
3: Adopt the world advanced two-level double-taper positioning technology, each cavity is self-locked independently,
to ensure the concentricity of the mold.
4: Mold injection cavity and injection core are made of high quality preheating special die steel from the original Factory in Sweden.
5: Thread mouth according to international standard manufacturing, the material selection of imported nitriding, high hardness, long service life.
6: Advanced design of hot runner, uniform heating temperature,improve the quality of plastic products.
7: no shear gate, reduce the labor intensity of workers.
8: Mold life is guaranteed to be more than 3 million mold times.
Item | Description |
Inquiry infomation we need to make quotation | Preform sample or bottle clear pictures/mould material/preform size and grams/cavity/special requirements etc. |
Mould material | 45#,50#,P20,H13,718,2738,NAk80,S136,SKd61 etc |
Mould cavity | Single or multi cavity |
Runner | Hot runner system |
Mould design | 3D or 2D drawing |
Mould life | 3 million shots |
Surface treatment | Electroplating |
Mould type | Normal type, self lock type or pin valve gate system |
Preform mould:
1. Normal preform mould with short tail or long tail
2. Self lock preform mould with short tail or long tail
3. Pin valve gate preform mould with no tail.
Company Advantage
• KAIXIN was founded in We own an advanced production and R&D center equipped with comprehensive supporting facilities after years of exploration. We are able to provide more high-quality products for the majority of customers.
• KAIXIN's location enjoys a beautiful environment with traffic convenience, which is good for the outward transportation of PET Preforms,Blow Molding Machine,Preform Molds,PET Bottle,Bottle Molds.
• With the joint efforts of all employees, our products are sold well in major cities in China and also exported to dozens of countries and regions such as the Middle East, South Asia, Australia, Eastern Europe, North America and South America.
• KAIXIN has a professional technical team and an experienced marketing team to promote the production and sales of products.
Thanks for visiting. If you have any questions about PET Preforms,Blow Molding Machine,Preform Molds,PET Bottle,Bottle Molds displayed on the page, please contact KAIXIN.
