KAIXIN Blow Machine Price 72 Mmmade in China

Company Advantages

· KAIXIN blow machine price comes in various innovative design styles.

· Its specifications meet the requirements in the market.

· PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD. can ensure quality of our blow machine price.

Hello, My friend, Good day! A pleasure to meet you. My name is Lily from Aikedi. what product do you need to look for? Do you need a sample test, we provide samples and shipping, Good quality, reasonable price, perfect after-sales service, we can be a one-stop solution from pet resin, preforms, blowing machines, blowing molds to finished products, hope we can be partners with you and develop the market together. our quality is second to none. if you are interested in it. Please send an inquiry to me， I hope to establish business relationship with you! Thanks and best regards! Looking forward to your prompt reply!

Products Description

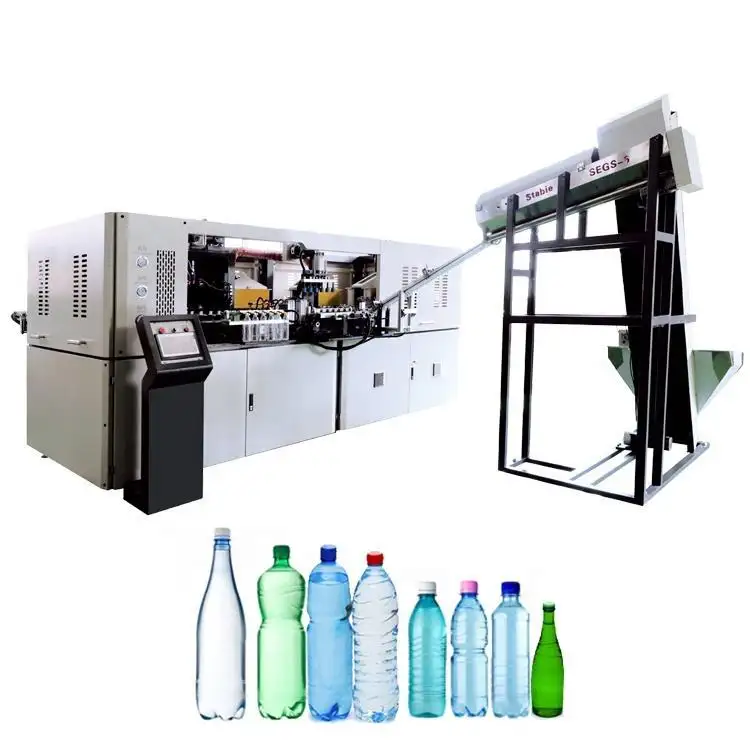

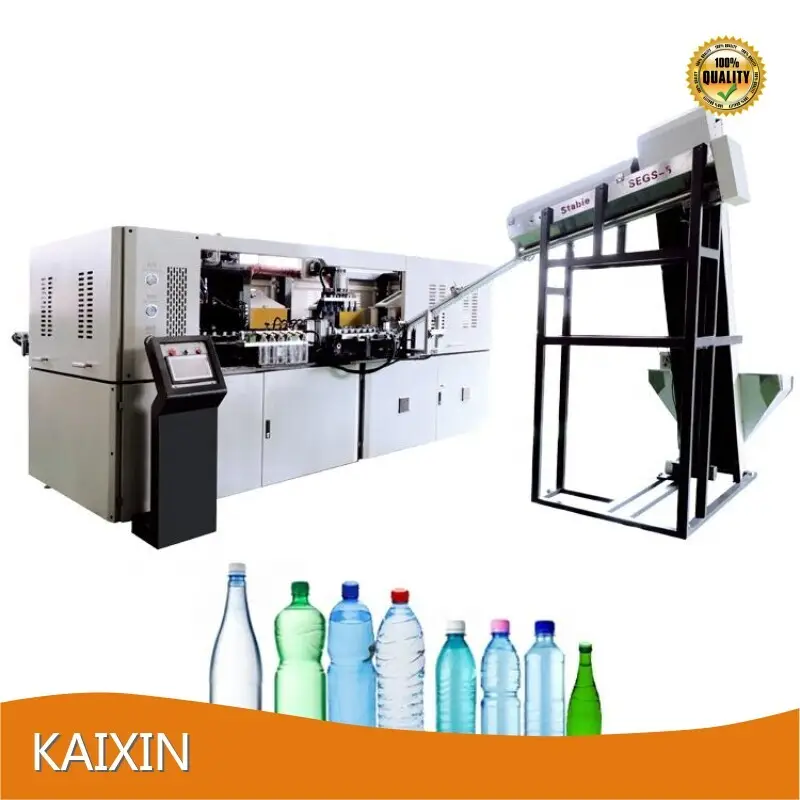

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple
maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .

If you have any question,please feel free to contact us.

Servo transmission system

High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.

Adopt infrared lamp heating

Adopt infrared lamp heating, strong penetration, preform rotation eating, track revolution, heating evenly, fast and reliable;Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic
temperature-removal device to ensure the constant temperature of oven.

Auto-loader

Auto-loader improves working efficiency, accurate transportation, reliable and durable, raw materials are completely free of moisture, pollution, foreign matter, and loss during feeding process. Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

Intelligent Human-Machine Interface

1.Human-machine interface control, easy operate and monitor.
2.Live production information supervise, auto record production data everyday
3.Failure warning and troubleshooting.

specification

Item			Q6000
Bottle type specification	Cavity	4
		Theory output	8000
		Max.volume	2L
		Bottle mouth maximum overall diameter	28-38mm
		Bottle biggest diameter	100mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	40pcs
		Light tube power	1.5KW
		Maximum heating power	60KW
		All electric machine installation	65KW
		Actual consumption	40%--70%
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1600L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	1500Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	6000kcal/hr
		Frozen water flow	138L/min
Machine specification	Machine size	6x2.1x2.2
		Machine weight	4.5ton

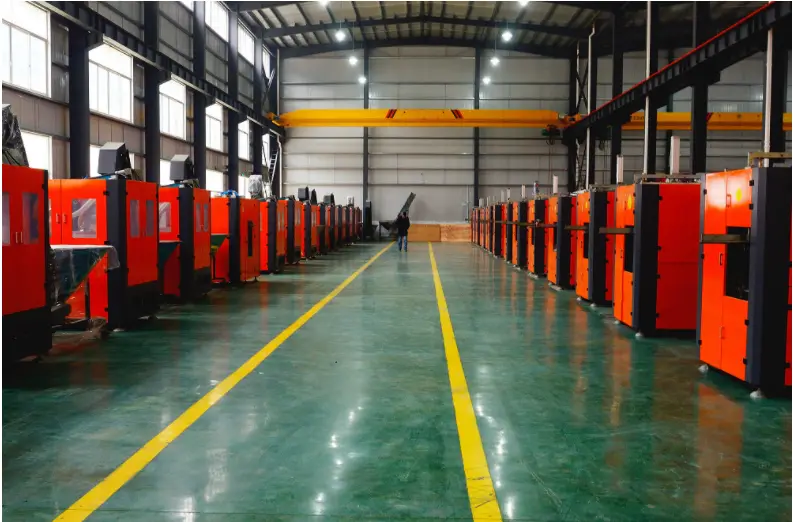

Company Introduction

Packing&Shipping

If you have any question,please feel free to contact us.

FAQ

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality.

Q2:How about quality control in your factory?
A2: “ Quality is the key point, do what customers needs”

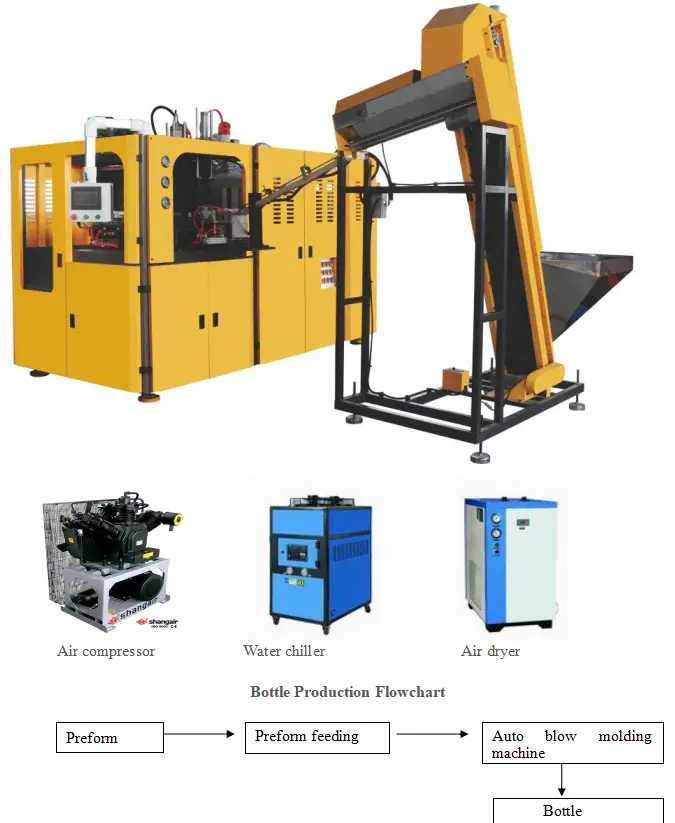

Q3: Is there complete machine include mould and other auxiliary equipment ?
A3: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable water chiller and color mixer...etc.

Q4: What is the language of the PLC and touch panel?
A4: English and Chinese, or other customized language

Q5: Can you help us with the shipment of this machine ?
A5: With honor ,we have our special shipment company which already cooperate for a long time, we will give you the best price we can. Also you can ask your own shipping forwarder, we help you do other things. Customer satisfy is our target.

Company Features

· PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD. is an expert in blow machine price production, serving many overseas clients.

· Facing the future, KAIXIN is committed to using the leading technology to offer the best blow machine price. Through the investment in the high technology introduction, KAIXIN has enough capability to produce blow machine price.

· PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD. is committed to ensuring that every customer in the world has high-quality blow machine price.

Application of the Product

The blow machine price developed by our company can be applied in different fields.

KAIXIN has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
