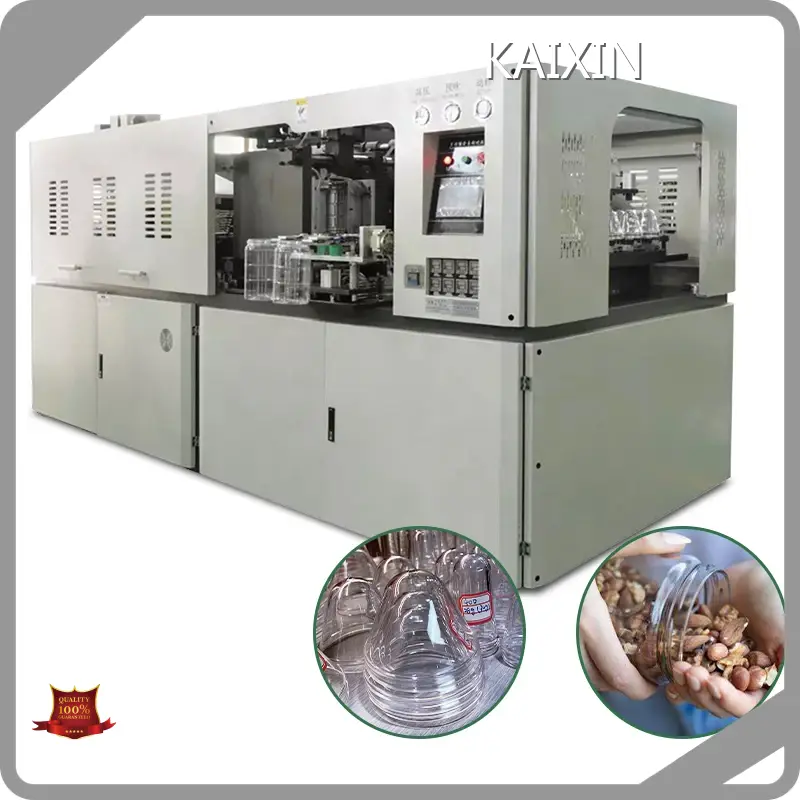

For Business Blow Molding Machine Stretch Blow Molding Machine by KAIXIN
Company Advantages
· KAIXIN blow molding machine delivers professional design concepts and advanced production methods.
· There is no negative feedback about the product quality and usability.
· The product is more competitive in the commercial market and has a broad market prospect.
Item | Unit | SEG-2(2L) | SEG-3(3L) | SEG-2(5L) | SEG-4 | SEG-4(2L) |
Max.volume | L | 2 | 3 | 4 | 0.6 | 2 |
Shift servo | Yes | Yes | Yes | Yes | Yes | |
Stretch servo | Yes | Yes | ||||
Clamping servo | ||||||
Points embryo servo | ||||||
Theory capacity servo | bpy | 1400 | 1200 | 1000 | 3000 | 2600 |
Mould cavity | pcs | 2 | 2 | 2 | 4 | 4 |
Heating pitch | mm | 114.3 | 152.4 | 190.5 | 76.2 | 114.3 |
Heating unit group | set | 3 | 4 | 5 | 5 | 5 |
Infrared lampsla | couet | 24 | 32 | 40 | 30 | 40 |
Number of bottle holder | PCS | 48 | 46 | 80 | 88 | 80 |
Baked embryo mpdulus | PCS | 11 | 12 | 10 | 10 | 10 |
Max neck diamodulus | mm | 105 | 140 | 160 | 60 | 100 |
Bottle diameter(max) | mm | 110 | 146 | 185 | 72 | 110 |
Bottle height(max) | mm | 330 | 330 | 330 | 260 | 330 |
preform height(max) | mm | 180 | 160 | 160 | 120 | 280 |
Action air consumption | m³/min | 1.6 | 1.6 | 2 | 2 | 2 |
Pressure of action | Mpa | 0.8-0.85 | 0.8-0.85 | 0.8-0.85 | 0.8-0.85 | 0.8-0.85 |
Blowing air consumption | m³/min | 1.6 | 1.6 | 2.4 | 2.4 | 2.4 |
Pressure of Moving | Mpa | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
Machine power | KW | <22 | <30 | <55 | <25 | <35 |
Installed power | KW | 60 | 68 | 90 | 70 | 90 |
Size | m | 2.65x1.9x1.98 | 3.28x1.9x1.98 | 3.95x1.9x1.98 | 3.4x1.8x1.98 | 4.5x1.9x1.98 |
Weight | Kg | 2500 | 3000 | 4500 | 4000 | 4500 |
Chiller specifications | HP | 3 | 3 | 5 | 5 | 5 |
FAQ
A1: We are a manufacturer, we supply the factory price with good quality.
Q2:How about quality control in your factory?
A2: “ Quality is the key point, do what customers needs”
Q3: Is there complete machine include mould and other auxiliary equipment ?
A4: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable water chiller and color mixer...etc.
Q4: What is the language of the PLC and touch panel?
A5: English and Chinese, or other customized language
Q5: Can you help us with the shipment of this machine ?
A6: With honor ,we have our special shipment company which already cooperate for a long time, we will give you the best price we can. Also you can ask your own shipping forwarder, we help you do other things. Customer satisfy is our target.
Company Features
· PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD. counts as one of the leading manufacturers of blow molding machine. We have solid expertise and abundant experience in this field.
· We have set up a professional sales team. With years of rich experience in the blow molding machine market, they are able to promote our business to grow and help us achieve business goals.
· Customers' support is an important factor in KAIXIN's success. Check it!
Product Details
We are not afraid of customers to pay attention to the details of our blow molding machine.
Application of the Product
KAIXIN's blow molding machine is of excellent quality and is widely used in the industry.
We have been engaged in the production and management of PET Preforms,Blow Molding Machine,Preform Molds,PET Bottle,Bottle Molds for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
Enterprise Advantages
Our company combines 'introduction' with 'training' to build a high-quality talent team. At present, our company has a number of senior talents who are familiar with product production, enterprise management and capital operation.
Our company is committed to creating a professional service system that suits our own situation and provides better services for consumers, so as to obtain further recognition from consumers.
KAIXIN will continue to follow the business philosophy of 'survive by quality, gain market by reputation, develop by innovation'. To better develop our company, we also carry forward the enterprise spirit of 'self-improvement, innovation and development, cooperation and win-win'. We sincerely provide quality products and services for new and old customers and now we are looking forward to cooperating with you and creating brilliance!
Since the founding in KAIXIN has industry experience for years. We also form a complete and scientific production management system.
Our sales network is spreading all over the country. We are dedicated to making it go global.
