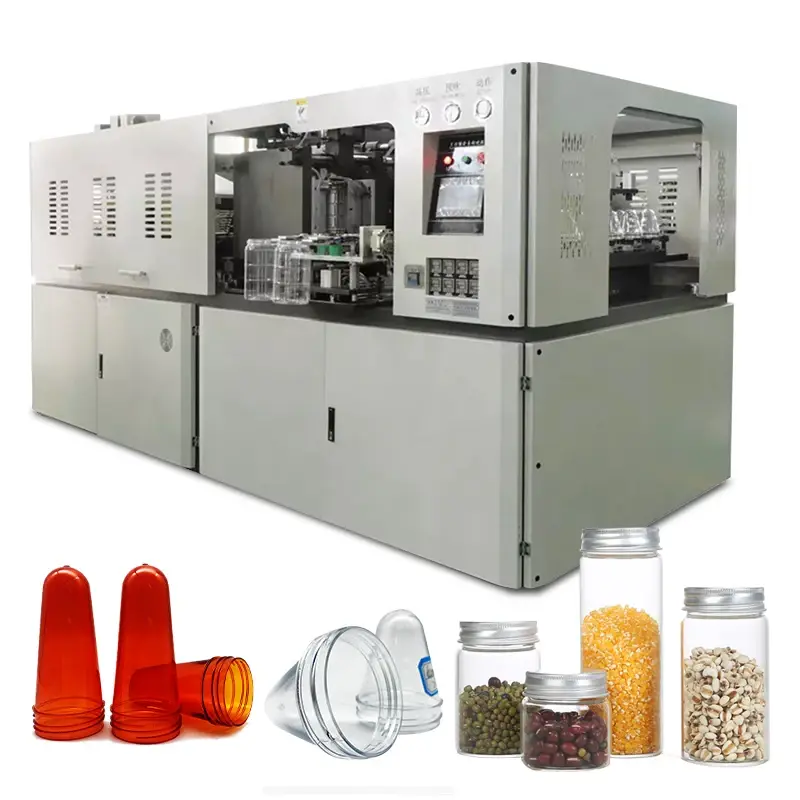

Factory Price Blow Machine Blow Machine Company
Product details of the blow machine
Product Specification
Type of shipping: By sea
Bottle type: PET Food, Dried fruit, Scented tea, etc.
Condition: New
Core Components: servo
Plastic Processed: PET
Product Overview
The supreme master of detailed design of blow machine has gained much more fame for KAIXIN. The strict quality inspection during the production efficiently prevents product defects. blow machine of KAIXIN can play a role in various industries. This product greatly caters to the industry development and market demand.
Product Description
The blow machine produced by our company have superior quality, and the specific details of products are presented in the following section.
Item | Unit | SEG-2(2L) | SEG-3(3L) | SEG-2(5L) | SEG-4 | SEG-4(2L) |
Max.volume | L | 2 | 3 | 4 | 0.6 | 2 |
Shift servo | Yes | Yes | Yes | Yes | Yes | |
Stretch servo | Yes | Yes | ||||
Clamping servo | ||||||
Points embryo servo | ||||||
Theory capacity servo | bpy | 1400 | 1200 | 1000 | 3000 | 2600 |
Mould cavity | pcs | 2 | 2 | 2 | 4 | 4 |
Heating pitch | mm | 114.3 | 152.4 | 190.5 | 76.2 | 114.3 |
Heating unit group | set | 3 | 4 | 5 | 5 | 5 |
Infrared lampsla | couet | 24 | 32 | 40 | 30 | 40 |
Number of bottle holder | PCS | 48 | 46 | 80 | 88 | 80 |
Baked embryo mpdulus | PCS | 11 | 12 | 10 | 10 | 10 |
Max neck diamodulus | mm | 105 | 140 | 160 | 60 | 100 |
Bottle diameter(max) | mm | 110 | 146 | 185 | 72 | 110 |
Bottle height(max) | mm | 330 | 330 | 330 | 260 | 330 |
preform height(max) | mm | 180 | 160 | 160 | 120 | 280 |
Action air consumption | m³/min | 1.6 | 1.6 | 2 | 2 | 2 |
Pressure of action | Mpa | 0.8-0.85 | 0.8-0.85 | 0.8-0.85 | 0.8-0.85 | 0.8-0.85 |
Blowing air consumption | m³/min | 1.6 | 1.6 | 2.4 | 2.4 | 2.4 |
Pressure of Moving | Mpa | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
Machine power | KW | <22 | <30 | <55 | <25 | <35 |
Installed power | KW | 60 | 68 | 90 | 70 | 90 |
Size | m | 2.65x1.9x1.98 | 3.28x1.9x1.98 | 3.95x1.9x1.98 | 3.4x1.8x1.98 | 4.5x1.9x1.98 |
Weight | Kg | 2500 | 3000 | 4500 | 4000 | 4500 |
Chiller specifications | HP | 3 | 3 | 5 | 5 | 5 |
FAQ
A1: We are a manufacturer, we supply the factory price with good quality.
Q2:How about quality control in your factory?
A2: “ Quality is the key point, do what customers needs”
Q3: Is there complete machine include mould and other auxiliary equipment ?
A4: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable water chiller and color mixer...etc.
Q4: What is the language of the PLC and touch panel?
A5: English and Chinese, or other customized language
Q5: Can you help us with the shipment of this machine ?
A6: With honor ,we have our special shipment company which already cooperate for a long time, we will give you the best price we can. Also you can ask your own shipping forwarder, we help you do other things. Customer satisfy is our target.
Company Advantages
Equipped with the most advanced machines, PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD. is a professional manufacturer for blow machine. PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD. is greatly supported in technology from our professional R&D base. PINGHU KAIXIN PLASTIC INDUSTRY CO., LTD.'s after-sale service wins universal praise. Contact!
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
